Global functions

Prints values on the screen, then goes to a new line.

Each value is converted like tostring does it: numbers without a useless .0, true, false, nil. Several values are separated by a tab, which moves to the next column that is a multiple of 4: handy to look at a few numbers, but use string.format when you want real columns. print() with nothing prints an empty line.

print("Iron ingots:", 128)
print("Running", true, nil)
print(10, 200, 3000)
print()
print("done")

Iron ingots:    128
Running true    nil
10  200 3000

done

A "\n" inside the text starts a new line, and a line longer than the screen (51 columns on a Personal Computer, 40 on a Tube Computer or a Microcontroller, 64 on a Modern Computer) continues on the next one:

print("Line 1\nLine 2")
print(string.rep("=", 60))

Line 1
Line 2
===================================================
=========

Characters that cannot be shown (codes below 32, apart from the tab and the line break) appear as ?.

See also write() term.write() tostring()

Prints text without going to a new line.

The values are converted to text and written one after the other, with nothing between them (unlike print, which puts a tab). The cursor stays at the end, so the next write, print or read continues on the same line. Tabs, line breaks, wrapping and scrolling work as with print.

write("Smelting")
for i = 1, 3 do
  write(".")
end
write(" done", "\n")
write("Batch ", 4, " of ", 10)
print()

Smelting... done
Batch 4 of 10

Its most common job is the question before a read: the answer is typed right after it.

write("How many crates? ")
local answer = read()

See also print() read() term.write()

Waits for a line typed on the keyboard and returns it.

The program stops in read until a player, in the computer's screen, types a line and presses Enter. The text appears where the cursor is, so a question written with write just before stays on the same line. After Enter, the cursor goes to the start of the next line.

write("Name of the new station: ")
local name = read()
print("Station '" .. name .. "' saved.")

What you get back:

• Always a string, even if the player typed digits: convert it with tonumber before doing arithmetic.
• "" (an empty string) when the player presses Enter without typing anything.
• At most 1024 characters. A line longer than the space left on the screen scrolls sideways while it is typed.

The player can edit the line before pressing Enter: Backspace, Delete, the left and right arrows, Home and End. Ctrl+V pastes the clipboard, up to its first line break. The up and down arrows and Tab do nothing here: the history and the completion only exist at the shell's prompt.

Hiding a password. With a mask, every typed character shows as that character. Only its first character is used: read("*") and read("*#") both show *. An empty mask "" hides nothing, and a mask that is not a string stops the program with bad argument #1 to 'read' (string expected, got number).

write("Password: ")
local code = read("*")
if code == "brass42" then
  print("Welcome")
  rs.set("left", true)    -- opens the piston door on the left
  sleep(3)
  rs.set("left", false)
else
  print("Wrong password")
end

The Door with a code builds a complete door around this.

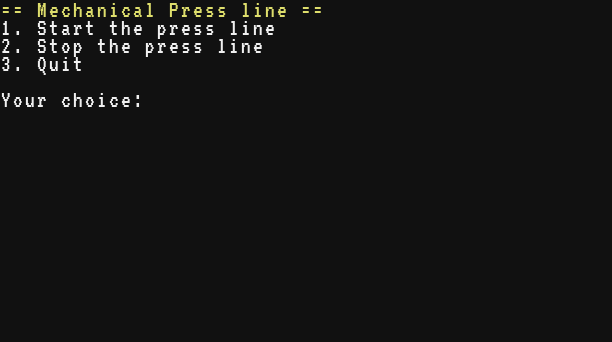

A menu. Print the choices, read a number, act, start again. The picture below is the screen while read waits:

local choices = {"Start the press line", "Stop the press line", "Quit"}
while true do
  term.clear()
  term.set_cursor(1, 1)
  term.set_fg(term.colors.yellow)
  print("== Mechanical Press line ==")
  term.set_fg(term.colors.white)
  for i, text in ipairs(choices) do
    print(i .. ". " .. text)
  end
  print()
  write("Your choice: ")
  local n = tonumber(read())
  if n == 1 then
    rs.set("back", false)   -- an unpowered clutch lets the shaft turn
    print("Line started")
  elseif n == 2 then
    rs.set("back", true)    -- a powered clutch stops it
    print("Line stopped")
  elseif n == 3 then
    break
  else
    print("Type 1, 2 or 3")
  end
  sleep(1)
end

Screen

Ctrl+T (or the Stop button) ends the program even while it waits in read.

See also write() tonumber() os.pull_event()

Pauses the program for a number of seconds.

Minecraft runs 20 ticks per second, and the computer counts its waits in ticks: sleep waits seconds × 20 ticks, rounded up to a whole tick, and always at least one tick.

local function ticks_of(seconds)
  local start = os.time()
  sleep(seconds)
  return os.time() - start
end
print(ticks_of(1), ticks_of(0.5), ticks_of(0.07), ticks_of(0))

20  10  2   1

A countdown before closing a gate:

for s = 5, 1, -1 do
  print("Gate closes in " .. s .. " s")
  sleep(1)
end
rs.set("top", true)   -- the Mechanical Piston closes the gate
print("Gate closed")

Gate closes in 5 s
Gate closes in 4 s
Gate closes in 3 s
Gate closes in 2 s
Gate closes in 1 s
Gate closed

While it sleeps, the computer runs no instructions at all, and the rest of the current tick's instructions is not kept for later. So a loop with a sleep inside is the right way to repeat a job regularly without wasting the processor, and a loop with sleep(0) runs at most 20 times per second. The time is world time: the rotation speed of the computer does not change it, a lagging server makes it longer. Without rotation, though, the computer is frozen, and the wait with it: it goes on when the shaft turns again.

Events that arrive during the sleep are not lost. They wait in the queue (256 at most, the oldest is dropped when it is full) for the next os.pull_event or read:

os.queue_event("refill")
sleep(1)
local e = os.pull_event()
print(e.name .. " was still there")

refill was still there

To wait for "a redstone signal, or 5 seconds, whichever comes first", sleep is not enough: start a timer with os.start_timer and wait with os.pull_event (see Time and timers).

A seconds that is not a number stops the program: bad argument #1 to 'sleep' (number expected, got string).

See also os.start_timer() os.pull_event() os.clock()

Converts a value to text.

.. already turns numbers into text by itself, but not true, false or nil: "powered: " .. true stops the program with attempt to concatenate a boolean value. That is where tostring is needed.

Numbers are written the same way everywhere (by print, .., tostring, table.concat): whole numbers below 10¹⁵ without a decimal point, the others with at most 14 significant digits, in exponent form when they are very large or very small. Division by zero gives inf or -inf, and 0 / 0 gives nan ("not a number").

print(tostring(64) .. " items")
print(0.1 + 0.2, 1 / 3)
print(123456789 * 1000000000, 0.00001)
print(1 / 0, -1 / 0, 0 / 0)
local powered = true
print("powered: " .. tostring(powered))

64 items
0.3 0.33333333333333
1.23456789e+17  1e-05
inf -inf    nan
powered: true

For a fixed number of decimals (3.10) or padded columns, use string.format instead.

See also tonumber() string.format()

Converts text to a number, or nil.

What read returns, what a file contains and what the shell passes in arg is always text, and arithmetic on text is an error ("10" + 1 stops with attempt to perform arithmetic on a string value). tonumber makes a number of it, or gives nil when the text is not a number, so you can check it.

Accepted: spaces around, a sign, decimals with a dot, an exponent, hexadecimal with 0x. Refused (nil): any other character, an empty text, a decimal comma ("1,5"), words. Values that are neither text nor numbers (nil, true, a table) also give nil.

print(tonumber("42") + 1)
print(tonumber(" -3.5 "))
print(tonumber("1e3"), tonumber("0x1F"))
print(tonumber("12 apples"), tonumber("1,5"))

43
-3.5
1000    31
nil nil

With a base, the text holds a whole number written in that base, with the letters a to z (or A to Z) for the digits 10 to 35. There is no 0x prefix and no decimals in this form. The value must then be a string (tonumber(42, 16) stops with bad argument #1 to 'tonumber' (string expected, got number)), and a base outside 2 to 36 stops with bad argument #2 to 'tonumber' (base out of range).

print(tonumber("ff", 16), tonumber("1011", 2), tonumber("Z", 36))
print(tonumber("12", 2))

255 11  35
nil

Asking the player for a number. Keep asking until the answer is valid. Since read gives text, tonumber checks it is a number, then the program checks it is in range:

local function ask_number(question, low, high)
  while true do
    write(question .. " (" .. low .. " to " .. high .. "): ")
    local n = tonumber(read())
    if n == nil then
      print("That is not a number.")
    elseif n ~= math.floor(n) or n < low or n > high then
      print("A whole number from " .. low .. " to " .. high .. ", please.")
    else
      return n
    end
  end
end

local rpm = ask_number("Target speed in RPM", 0, 256)
print("Speed set to " .. rpm .. " RPM")

tonumber(x) or 0 is a common shortcut when a missing or broken value may simply count as zero.

See also tostring() read()

Gives the type of a value: "nil", "number", "string", "boolean", "table" or "function".

Use it when a value can be of several kinds: data received with net.receive (text or a table), the result of a device method, an optional parameter. Functions you write, built-in functions (print) and the iterators of pairs and ipairs are all "function".

print(type(64), type("iron"), type(true))
print(type(nil), type({}), type(print))

number  string  boolean
nil table   function

local function describe(data)
  if type(data) == "table" then
    return "a table of " .. #table.keys(data) .. " entries"
  elseif type(data) == "number" then
    return "the number " .. data
  end
  return tostring(data)
end
print(describe({x = 10, z = -4}))
print(describe(15))
print(describe("hello"))

a table of 2 entries
the number 15
hello

type() with no argument at all stops the program with bad argument #1 to 'type' (value expected); type(nil) is fine and gives "nil".

See also tostring()

Loops over every key and value of a table: for k, v in pairs(t) do.

The order is always the same: first the whole numbers 1, 2, 3... in order, then the other keys in the order they were first added. Unlike Lua, where the order is random, you can rely on it, for example to print a table in the order you wrote it. Keys whose value is nil do not exist and are not visited.

local stock = {iron = 1200, copper = 640, zinc = 96}
stock.brass = 32
for item, count in pairs(stock) do
  print(item, count)
end

iron    1200
copper  640
zinc    96
brass   32

local t = {"first", "second", mode = "auto"}
t[3] = "third"
for k, v in pairs(t) do
  print(k, v)
end

1   first
2   second
3   third
mode    auto

Changing the table during the loop. Changing the value of a key, or removing a key (setting it to nil), is safe: a removed key that was not visited yet is skipped. This empties the finished jobs of a table:

local jobs = {press = "done", mixer = "running", saw = "done"}
for name, state in pairs(jobs) do
  if state == "done" then
    jobs[name] = nil
  end
end
print(#table.keys(jobs) .. " job left")

1 job left

Adding keys during the loop is another story: some may be visited, some not, and appending to the list you are walking can make the loop never end. Collect what to add in another table, and add it after the loop.

The value pairs returns is an iterator: it only works in a for loop. Calling it yourself stops with an iterator can only be used in a 'for' loop. A value that is not a table stops the program: pairs(nil) gives bad argument #1 to 'pairs' (table expected, got no value), usually because a function returned nil where you expected a table.

See also ipairs() table.keys()

Loops over t[1], t[2]... until the first nil.

It gives the position and the value, in order, and ignores the named keys. Use it for lists: stations of a line, slots, steps of a recipe.

local stops = {"Mine", "Smeltery", "Depot"}
stops.line = "red"
for i, name in ipairs(stops) do
  print(i .. ". " .. name)
end

1. Mine
2. Smeltery
3. Depot

It stops at the first missing position, even if values follow. pairs would show them:

local slots = {"coal", "iron", "gold"}
slots[2] = nil
for i, item in ipairs(slots) do print("ipairs", i, item) end
for i, item in pairs(slots) do print("pairs", i, item) end

ipairs  1   coal
pairs   1   coal
pairs   3   gold

The loop reads t[i] at each step, so changes made during the loop are seen. Removing entries with table.remove while walking forward skips the entry that slides into the removed place: walk backwards with a numeric for instead (see table.remove).

See also pairs() table.insert()

Stops the program with an error.

Use it when the program meets a situation it cannot handle: a missing device, a setting out of range. The message gets the file and the line in front of it, the program stops and the shell comes back, unless a pcall around the call catches the error.

local function set_speed(rpm)
  if rpm < -256 or rpm > 256 then
    error("speed out of range: " .. rpm)
  end
  print("speed set to " .. rpm)
end
set_speed(128)
set_speed(300)
print("never printed")

speed set to 128
snippet:3: speed out of range: 300

The message is always turned into text with tostring: error(42) gives 42, error() gives nil, and a table becomes table: 0x..., so an error cannot carry a table to the pcall that catches it. Put the details in the text. There is no "level" argument as in Lua: the position is always the line of the error call, and a second argument is ignored.

See also pcall() assert()

Calls a function and catches its errors: you get {ok=true, value=...} or {ok=false, error="..."}.

pcall(f, a, b) calls f(a, b). If it runs to the end, you get a table with ok = true and value, what f returned (absent when f returned nothing). If an error happens anywhere inside, the program does not stop: you get ok = false and error, the message as text, file and line included. Since a Brass function returns a single value, pcall gives a table where Lua gives two values.

local function divide(a, b)
  if b == 0 then
    error("division by zero")
  end
  return a / b
end
local r = pcall(divide, 10, 4)
print(r.ok, r.value)
r = pcall(divide, 1, 0)
print(r.ok, r.error)

true    2.5
false   snippet:3: division by zero

What it catches: every error raised while f runs, its own code and everything it calls. error and assert, a wrong argument given to a library function, arithmetic on nil, a device that was broken, a full disk, out of memory, stack overflow, an import that fails. It also works around functions that wait: f may call sleep, read or os.pull_event.

What it cannot catch: Ctrl+T and the Stop button, which always end the program, and os.reboot or os.shutdown. A syntax error in the program itself cannot be caught either: the program never starts.

pcall of something that is not a function does not stop the program: pcall(nil) gives {ok = false, error = "attempt to call a nil value"}, without a line number. Handy to call a method that a device may not have.

Loading a settings file safely. The settings of a press line live in a file the player can edit. If it is missing or wrong, the program keeps its default settings instead of crashing:

fs.write("press.cfg", "speed = fast\nside = back\n")   -- a typo in the file

local function load_config(path)
  local text = fs.read(path)
  if text == nil then
    error("no file " .. path)
  end
  local config = {}
  for _, line in ipairs(text:split("\n")) do
    local eq = line:find("=")
    if eq then
      local key = line:sub(1, eq - 1):trim()
      local value = line:sub(eq + 1):trim()
      config[key] = tonumber(value) or value
    end
  end
  if type(config.speed) ~= "number" then
    error("speed must be a number, not '" .. tostring(config.speed) .. "'")
  end
  return config
end

local config = {speed = 32, side = "back"}   -- used when the file is bad
local r = pcall(load_config, "press.cfg")
if r.ok then
  config = r.value
else
  print("press.cfg ignored:")
  print(r.error)
end
print("Press at " .. config.speed .. " RPM, " .. config.side)

press.cfg ignored:
snippet:18: speed must be a number, not 'fast'
Press at 32 RPM, back

See also error() assert()

Stops the program with an error when the value is false or nil; otherwise returns it.

assert(condition, "message") is a one-line if not condition then error("message") end. Because it returns the value it checked, it can check and keep a value at the same time: local text = assert(fs.read("recipes"), "no recipes file").

local chest = {size = 27}
local slots = assert(chest.size, "the chest has no size")
print("slots: " .. slots)
assert(slots > 30, "a vault is needed, only " .. slots .. " slots")

slots: 27
snippet:4: a vault is needed, only 27 slots

See also error() pcall()

Runs another file once and returns what it returns: import "lib/utils".

The imported file is an ordinary Brass program. Usually it ends with return { ... }, a table of functions:

-- helpers shared by the programs of the warehouse
local function stacks(count)
  return math.ceil(count / 64)
end

local function bar(count, capacity, width)
  local filled = math.min(width, math.floor(count / capacity * width))
  return "[" .. string.rep("#", filled) .. string.rep(".", width - filled) .. "]"
end

return {stacks = stacks, bar = bar}

local stock = import "lib/stock"
print(stock.stacks(1000) .. " stacks")
print(stock.bar(1000, 2048, 20))

With a text in quotes, the parentheses are optional: import "lib/stock" is import("lib/stock").

Where the file is looked for. Relative to the folder of the file that calls import, not to the current folder of the shell: games/snake/main calling import "draw" loads games/snake/draw. .. goes up one folder and a leading / starts from the root: import "../lib/stock", import "/lib/stock". At the brass prompt, the path is relative to the current folder. The name is used exactly as written: no extension is added, so import "utils" loads the file utils, not utils.lua.

Once per program. The first import of a file runs it. Every later import of the same file, from any file of the program, gives back the same value without running it again. So all the files share one copy of a library, with its variables. The next run of the program starts afresh. A file whose run stopped with an error is not remembered: importing it again runs it again.

What is shared. Globals (functions and variables defined without local) are seen by every file of the program. The chunk-level locals of a file stay private to it. Prefer locals and a returned table: two libraries cannot then overwrite each other's names.

This example writes a small library with fs.write, then imports it twice:

fs.write("lib/units", "loads = (loads or 0) + 1\n"
  .. "local per_stack = 64\n"
  .. "return {stacks = function(n) return math.ceil(n / per_stack) end}\n")
local units = import "lib/units"
local again = import "lib/units"
print(units.stacks(200), loads, units == again, per_stack)

4   1   true    nil

units.stacks works, the file ran once (loads is 1, a global), both imports gave the same table, and the local per_stack stayed inside the library.

When it fails, import stops the program with an error that pcall can catch:

A settings file can be a Brass file too, return {speed = 64, side = "back"}, loaded with a fallback:

local r = pcall(import, "/settings")
local settings = {speed = 32, side = "back"}
if r.ok and type(r.value) == "table" then
  settings = r.value
end

See also require() Programs in several files

Same as import.

require is the very same function as import, for the habits of ComputerCraft and Lua players. It shares its cache: a file loaded with one and then with the other runs once. Unlike Lua, the path uses slashes, not dots: require "lib/utils", not require "lib.utils" (which looks for a file named lib.utils).

local utils = require "lib/utils"

See also import()

The words typed after the program name at the prompt, as a list of strings.

Typing pulse back 3 at the prompt (or run pulse back 3) runs the file pulse with arg[1] = "back" and arg[2] = "3". #arg is the number of words, and arg[0] is the path of the program from the root, without the leading slash ("pulse", or "tools/pulse" for a program in a folder).

-- usage: pulse <side> [times]
local side = arg[1]
local times = tonumber(arg[2]) or 1
if side == nil then
  print("Usage: " .. arg[0] .. " <side> [times]")
  return
end
print("Pulsing " .. side .. " " .. times .. " times")
for i = 1, times do
  rs.set(side, true)
  sleep(0.5)
  rs.set(side, false)
  sleep(0.5)
end

> pulse
Usage: pulse <side> [times]
> pulse back 3
Pulsing back 3 times

• The words are cut at the spaces, and quotes have no special meaning: stock "Iron Ingot" gives two words, "Iron and Ingot".
• They are always strings: convert numbers with tonumber.
• A program started at boot (startup) gets no words: arg is {}, with arg[0] = "startup".
• arg exists while a program started from a file runs. At the brass prompt it is nil.
• It is an ordinary global: every file of the program sees it, and the program can change it.
